Bonded NdFeB Magnet

• Strong magnetic power (Power-Index(1) = 6~7)
• Newest type of magnetic material with higher cost (Cost-Index(2) = 7~10)
• Isotropic(3)
• Produced by composition of rare-earth NdFeB magnetic powders embedded in thermoplastic and formed by injection moulding machining
• Hard, Non-brittle light weight; plastic-like magnet, able to be moulded to varieties of shapes e.g. thin ring, gears, arc-segments etc.; able to incorporate with shafts during manufacturing
• Excellent resistance to demagnetization
• Good temperature stability
• Good resistance to corrosion and chips

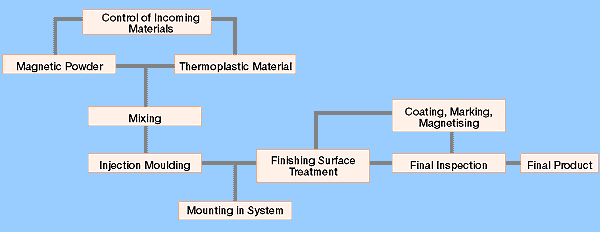

Production Flow Chart

Magnetic Properties
Magnetics and Physical Properties
MB-4
MB-6
MB-8
MB-8H
MB-10
MB-10H
MB-12
MB-12D

Residual Induction (mT)

Br (KGs)

350-450

(3.5-4.5)

500-600

(5.0-6.0)

600-670

(6.0-6.7)

560-680

(5.6-6.8)

650-700

(6.5-7.0)

660-700

(6.6-7.0)

700-800

(7.0-8.0)

700-800

(7.0-8.0)

Coercive Force (KA/m)

Hcb (KOe)

240-280

(3.0-3.5)

320-360

(4.0-4.5)

360-400

(4.5-5.5)

400-464

(5.0-5.8)

400-440

(5.0-5.5)

400-480

(5.5-6.0)

416-480

(5.2-6.0)

448-480

(5.6-6.0)

Intrinsic Coercive Force (KA/m)

Hcj (KOe)

640-800

(8.0-10.0)

640-800

(8.0-10.0)

640-880

(8.0-11.0)

960-1360

(12.0-14.0)

640-800

(8.0-10.0)

760-840

(9.5-10.5)

640-880

(8.0-11.0)

720-960

(9.0-12.0)

Maximum Energy Products(KJ/m3)

(BH) max (MGOe)

24-32

(3.0-4.0)

40-56

(5.0-7.0)

64-72

(8.0-9.0)

60-72

(7.5-9.0)

72-80

(9.0-10.0)

80-96

(9.0-10.0)

80-96

(10.0-12.0)

80-96

(10.0-12.0)
Physical Properties
Magnetics and Physical Properties
MB-4
MB-6
MB-8
MB-8H
MB-10
MB-10H
MB-12
MB-12D
Average Reversible Temperature Coefficient (%/°C)
-0.1
-0.1
-0.10
-0.13
-0.1
-0.1
-0.1
-0.07
Curie Temperature (°C)
400
400
400
305
400
360
360
470
Max Operating Temperature (°C)
150
150
140
120
150
130
130
140
Saturation Magnetizing Force (KA/m) sd (KOe)
1600
1600
2000
2800
1600
2000
1600
2000
(KA/m) sd (KOe)
20
20
25
35
20
25
20
25
Density d (g/cm3)
4.5-5.0
5.5-5.8
5.8-6.0
5.8-6.0
5.8-6.2
6.0-6.2
6.2-6.6
6.2-6.6
Hardness HRB
40-45
40-45
35-38
35-38
35-38
35-38
35-38
35-38
